Eizo ColorEdge CG2420 Monitor
Hassle-free maintenance and optimal colour reproduction for professionals to express their vision.
Let your imagination soar with this professional-level model for use in photography, design, print, and post production. It features a built-in self calibration sensor for hassle-free monitor maintenance, vivid colours reproduced to industry standards, and exceptionally high contrast for producing true blacks.
Built-In Sensor to Automate Your Workflow
Automate your calibration with the sensor that is housed within the front bezel. The sensor swings onto the screen only when calibrating, eliminating the need for a third-party calibration device. It even operates while the monitor is in portrait mode.
ColorNavigator 7 Color Management Software
To properly manage colour in your work, it is necessary to ensure your monitor maintains consistent settings. The bundled ColorNavigator 7 software allows you to easily carry out calibration. Simply select the desired preset or assign values for brightness, white point, and gamma. The built-in sensor directly utilises the monitor's look-up-table and creates an ICC profile within minutes.
ColorNavigator NX Quality Control Software
The ColorEdge CG2420 supports ColorNavigator NX quality control (QC) software. It offers asset management of client ColorEdge monitors and covers calibration, emulation, built-in sensor correlation, and colour mode settings. With ColorNavigator NX, calibration information is saved to the monitor instead of the PC's operating system so you do not have to recalibrate if connecting to more than one PC. The software is most effectively used with EIZO's ColorNavigator Network solution.
ColorNavigator Network Quality Control Software
ColorNavigator Network provides centralised quality control of ColorEdge monitors that have ColorNavigator NX installed. Administrators can set colour modes, schedule self-calibration, register or adjust asset management settings, and other tasks whether the monitors are local or remote. ColorNavigator Network is hosted on a secure cloud server to free you from the initial investment and running costs of providing your own server.
See How Other Devices Display Colour with Media Emulation
ColorNavigator 7 emulates the colour characteristics of other media devices such as tablets, smartphones, notebook PCs, and other LCD/CRT monitors. With a spectophotometer, ColorNavigator 7 reads the emulated device's colour patches as they appear in the web browser and creates an ICC profile. By using this profile with a ColorEdge CG monitor, content creators can see how their clients view colour on their respective devices.
Features for Creative Work
Vivid Colours Reproduced to Industry Standards
The wide colour gamut of the ColorEdge CG2420 reproduces almost the entire Adobe RGB colour space so images shot in Adobe RGB will be displayed correctly. Photos of vibrant blue skies and lush green forests are reproduced faithfully in a way that monitors limited to an sRGB colour space cannot display. The wide colour gamut also ensures reproduction of almost the entire ISO-coated and US web-coated CMYK colour spaces used in printing.
10-bit Simultaneous Display
Using the DisplayPort or HDMI inputs, the ColorEdge CG2420 offers 10-bit simultaneous display* from a 16-bit look-up-table (LUT) which means it can show more than one billion colours simultaneously. This is 64 times more colours than you get with 8-bit display, resulting in smooth colour gradations and reduced Delta-E between two adjacent colours.
*A graphics board and software which support 10-bit output are also necessary for 10-bit display. Equipment that supports Deep Colour is necessary with the HDMI inputs.
Adjusted at the Factory for Smooth Colour Gradations
The gamma level for each ColorEdge monitor is adjusted at the factory by measuring the R, G, and B gamma values from 0 - 255, then using the monitor's 16-bit look-up-table (LUT) to select the 256 most appropriate tones and achieve the desired value. This ensures the smoothest colour gradations in your images.
Stable Colour in Just 3 Minutes
A typical monitor takes 30 minutes or more for its brightness, chromaticity, and tone characteristics to stabilise. The ColorEdge CG2420 takes a mere 3 minutes. Whether you are working in a studio or taking the monitor with you on location, you get reliable colour display soon after turning the monitor on.
Uniformity from Corner to Corner
Fluctuations in brightness and chromaticity on different parts of the screen are a common trait of LCD monitors. To counteract this, the ColorEdge CG2420 is equipped with EIZO's patented digital uniformity equaliser (DUE) technology to ensure a Delta-E difference of 3 or less across the screen. DUE also counterbalances the influences that a fluctuating temperature may have on colour temperature and brightness for stable image display.
Wide Viewing Angles with IPS Panel
The 178° wide viewing angles afforded by the IPS panel technology allow two or more people to view the screen at once with little change in colour or contrast.
Feature for Video Editing and Post Production
True Black Display
In compliance with the DCI standard, the ColorEdge CG2420 offers a high contrast ratio of 1500:1 for producing true blacks that are otherwise difficult to display on a typical LCD monitor. When viewing the screen from an angle in a dimly lit room, dark tones typically appear washed out due to the display characteristics of LCD backlights. The CG Series is equipped with a film which allows tones to retain their depth even when viewed from an angle.
Sleek, User-Friendly Design
The slim cabinet features unobtrusive frames that are 39% slimmer than its predecessor's so you can focus more on the screen.
Seamless Electrostatic Switches
The flat design uses electrostatic switches on the front bezel in place of traditional buttons for seamless access to monitor settings.
Built-in Carrying Handle
A carrying handle on the back of the monitor allows you to easily move it from one location to another.
Easy-Access USB Ports
The monitor is equipped with three easy-to-access USB 3.0 ports, including one port for battery charging devices such as a smartphone.
Features for Comfort and Ease-of-Use
Minimised Reflections with Non-Glare Panel
The monitor is equipped with an IPS non-glare panel for high visibility. It also uses dimming technology to minimise flicker and help prevent eye fatigue for a more comfortable working environment.
I/P Conversion for Flicker-Free Display
The HDMI input of the ColorEdge CG2420 supports I/P (interlace/progressive) conversion for converting the interlace signals from TV and video into progressive signals for flicker-free display.

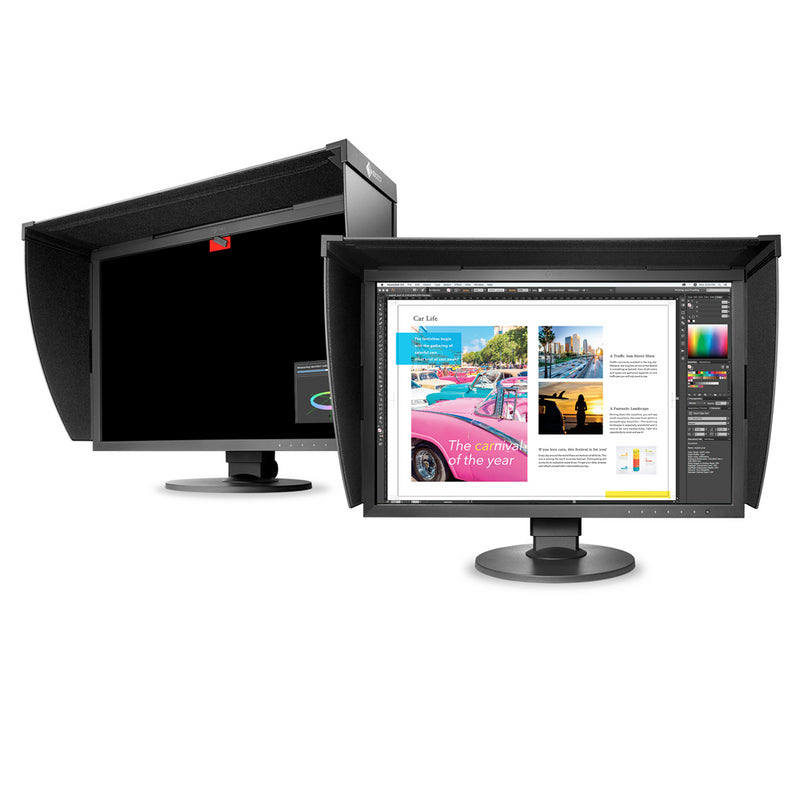

The CG Series comes bundled with a shading hood that effectively prevents glare on the monitor's screen caused by ambient lighting. The ColorEdge CG2420's shading hood is newly designed and attaches to the monitor magnetically. This allows the users to attach the hood quickly and easily without needing to connect separate parts.
Ergonomic Stand for Comfort and Convenience
Adjust the screen to the most comfortable angle and reposition it to show your work to a colleague or client. The monitor comes with a versatile stand that offers height, tilt, and swivel adjustments as well as portrait display.
DisplayPort, HDMI, and DVI-D inputs are included and support various types of graphics boards. The HDMI input also offers direct connection with digital cameras. Two USB upstream ports allow two computers to be connected at once so it is not necessary to reconnect the USB cable when using the ColorNavigator software and switching between computers.
Commitment to Quality
5-Year Manufacturer's Warranty
ColorEdge monitors are backed by a manufacturer's 5-year warranty that covers all components including the LCD panel*. EIZO manufactures its products at its own factories to allow close control over production quality and ensure each monitor is built to last.
*Usage time is limited to 30,000 hours.
EIZO guarantees its ColorEdge monitors will be free from bright sub-pixels for six months from the date of purchase.
Brightness and Colour Warranty
The brightness and colour of the ColorEdge CG2420 is warranted for up to 10,000 hours* from the date of purchase. Monitor must be used within the recommended brightness of 120 cd/m2 or less and the colour temperature between 5000 - 6500 K. ;
World's First Colour Accuracy (Quick Stability Grade) Certification
The ColorEdge CG2420 was among the first monitors in the world to obtain TÜV Rheinland’s Colour Accuracy (Quick Stability grade) certification. TÜV Rheinland Colour Accuracy is the first quality and performance criterion to measure the colour accuracy of display devices for multiple graphics fields such as photography, post production, design, and printing.
Used by ColorEdge Ambassadors
The ColorEdge Ambassador Program showcases professional photographer, designers, filmmakers, and other creatives who are committed to inspiring and educating artists around the world of all levels. The ColorEdge CG2420 is used by ColorEdge Ambassador Marco Olivotto from Italy in retouching and colour correction.
|Built in calibration:||Yes|
|Dim with stand WxHxD (mm):||554 x 395-551 x 245|
|Dim without stand WxHxD (mm):||554 x 362 x 64|
|Included cabels:||AC Power lead, Display Port, HDMI|
|Input terminals:||Display Port, HDMI, DVI-D|
|Native Resolution:||1920 x 1200|
|Response time:||10 ms|
|Software Included:||ColorNavigator 7|
|Weight with stand (kg):||7.8|
|Weight without stand (kg):||5|
|Whats included:||Screen cleaner, certificate|
